X3 Acess

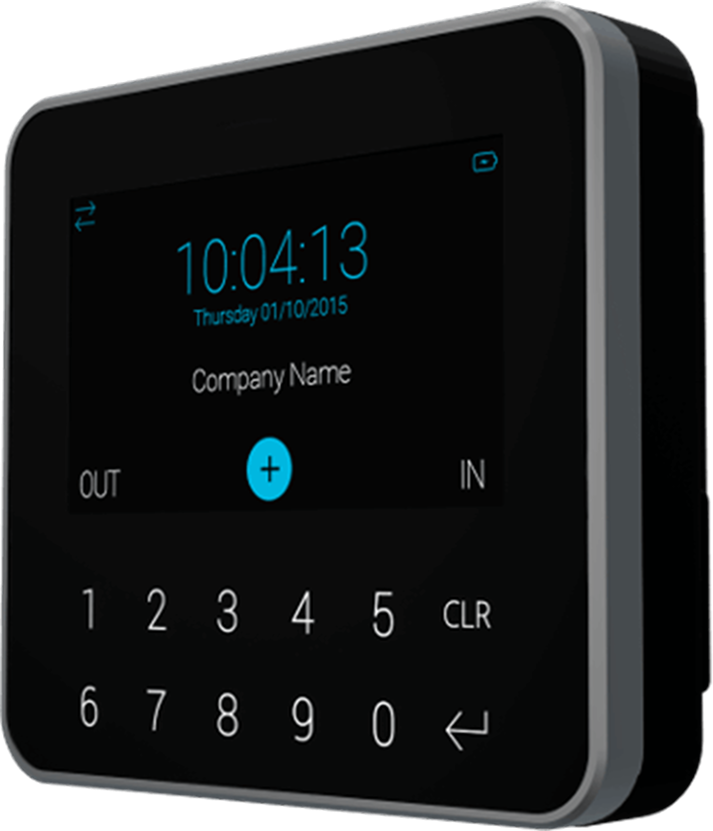

X3 time & attendance terminal by Axess

The Axess X3 time clock is designed to support both attendance monitoring as well as access control. It is suitable for any type of work environment and can also be installed outdoors.

It offers excellent value for money, combining compactness and robustness with a high level of technological development and a beautiful design. Its great strength—which applies to all the terminals that are part of the X family—is that it is fully configurable and manageable via the Web (configuration parameters, cards, users identified by name, permissions, reviewing clock-ins, etc.).

Compared to its predecessors, the X3 model is equipped with both a numerical keyboard and a touch screen interface that make it more intuitive to use. An integrated biometric version, the X3BIO, is also available.

  • Dimensions: 120mm x 130mm x 52mm
  • 4.3” 480 x 272 pixel back-lit LED display – resistive Touch screen
  • 12 membrane numeric keys
  • multi-tone buzzer
  • Internal RFID reader
  • A maximum of 8 readers can be connected to the RS485 port including XFinger biometric readers
  • PoE 802.3.af or with power supply from 9 to 50 Volt
  • Battery: 1 hour of continuous operation with option of automatic power-off management
  • Memory: Over 20 million transactions and over 100,000 users
  • 1 internal relay 1A, 30V DC
  • 2 internal digital inputs
  • Up to 17 relays and 18 inputs via 8 optional boards FD-NeoMAX Power Supply
  • External USB host 2.0 full-speed, password protected
  • 4 GB MicroSD card
  • 1 RS485 with NET92 or SPP protocols to expand the number of I/O readers connecting up to 8 optional devices

X4 Axess

X4 and X4 Glass time & attendance terminals by Axess

The X4 is an attendance terminal and a high-security gate access controller, also available in the X4 Glass version, which is equipped with a capacitive touch screen.

Highly robust and compact (less than 4 cm thick), it offers an elegant design and a color display that make it pleasant and easy to use. Both the messages on the display and the audio signals are always easy to understand.

This attendance device is very easy to configure – via FTP or the web – and ready to use, able to communicate with the server in real time (for clocking in/out or status changes), and offering the possibility to encrypt the connection thanks to the integrated HTTPS client.

It is highly flexible and easily adapts to mixed technological environments and card changes. It can also be supplied with a biometric reader.

  • Dimensions: 150mm x 85mm x 35mm
  • 4.3-inch 480×272 backlit LED display
  • Vertical or horizontal mounting
  • 1 external USB 2.0 port to download password protected data
  • 1 Ethernet 10/100 POE A&B compatible with HTTP and FTP standard protocols
  • POE or electrical power supply
  • Internal RFID reader available in different technologies (X4 Glass)
  • Built-in RF5 multi-technology reader, able to read several cards (X4)
  • HID multiclass reader (optional)
  • 1 configurable 30V 1A relay
  • 2 digital inputs for dry contacts
  • Backup battery that guarantees one hour of operation
  • Internal WiFi 802.11 b/g module (optional)
  • Buzzer
  • Real-time timestamps

Switch over to a modern attendance management solution!

Read our Privacy Policy

terminale rilevazione presenze X7 Axess

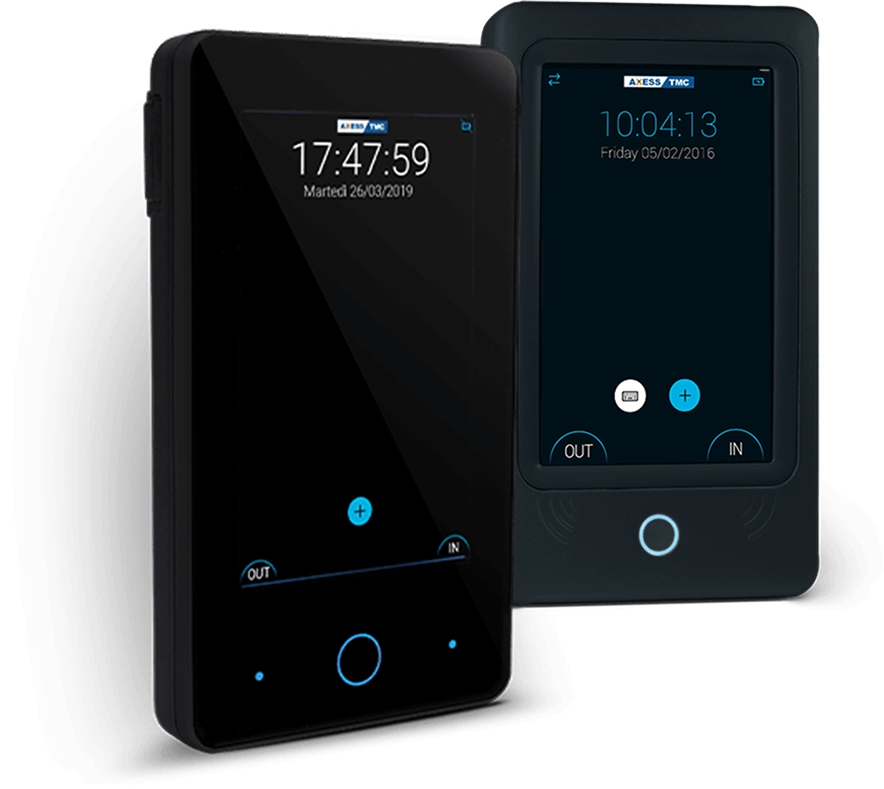

X7 time & attendance terminal by Axess

A multifunctional POE terminal able to meet the most sophisticated business needs. It can manage up to 8 independent access gates, both online and offline, and can also be used in outdoor work environments.

Both the configuration of the terminal and the management of all its functions can be done remotely, via browser or FTP.

One can connect up to 3 readers, one internally and two externally. One of these can be biometric for fingerprint reading.

Thanks to the large 7-inch color display, users can perform various operations directly on the terminal’s touch-screen interface, which can be installed horizontally or vertically.

  • Size and weight :132 x 232 x 52 mm
  • Display 7’’ 800×480 TFT back-lit LED display
  • Resistive touch screen display (X7)
  • Capacitive touch screen display (X7 Glass)
  • Internal RFID reader capable of supporting multiple technologies
  • 2 external auxiliary readers – of which one can be Biometric
  • Communication: TCP/IP, HTTP, HTTPS and FTP
  • PoE 802.3.af or with power supply from 9 to 48 Volt – 5 7 Watt
  • Battery: 1 hour of continuous operation with option of automatic power-off management
  • 8 GB MicroSD card
  • External USB host 2.0 full-speed, password protected
  • 1 internal relay 1A, 30V DC (resistive load) NO or NC
  • Expandable Inputs and outputs via optional RS485 boards
  • Multi-tone buzzer
  • Memory: Over 1 million transactions and over 100,000 users
Terminale X3BIO

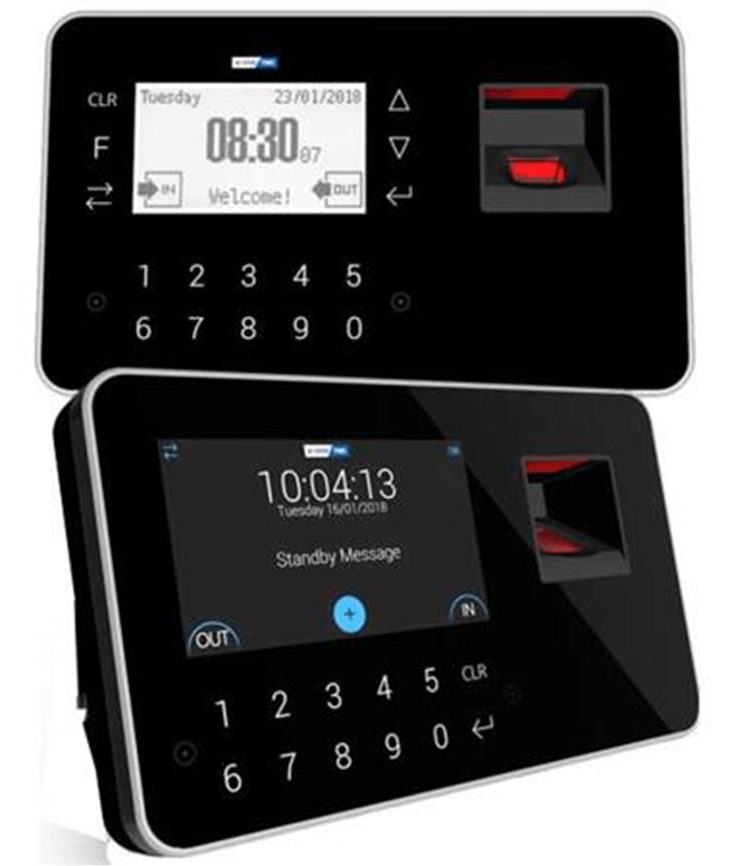

XBIO Family time & attendance terminals by Axess

One can also combine the Altamira Attendance software with a “family” of attendance and access control terminals with integrated biometrics. This is a particularly interesting solution for those companies that are looking for maximum security and reliability.

These terminals allow one to identify users not only by the fingerprint reader, but also by typing a code on the keyboard (which can be combined with the fingerprint) or proximity tags.

In particular, the XBIO3 model is equipped with a touch-screen interface, a large color display that allows one to perform various operations directly from the terminal, and transmits data via HTTPS to ensure secure and encrypted communications with the server.

  • 4.3″ 480x272px backlit LED display
  • Resistive touchscreen
  • Membrane numeric keypad (12 keys)
  • Internal RFID reader capable of supporting multiple technologies
  • PoE 802.3.af or with power supply from 9 to 48 Volt- 5 7 Watt.
  • Battery: 1 hour of continuous operation with option of automatic power-off management
  • External USB host 2.0 full-speed, password-protected
  • Operation: Stand-Alone, Online with an HTTP Server, semionline
  • Communication: TCP/IP, HTTP and FTP
  • 4 GB MicroSD card
  • 1 internal relay 1A, 30V DC
  • 2 internal digital inputs
  • Up to 17 relays and 18 inputs via 8 optional boards
  • Multi-tone buzzer
  • Memory: Over 20 million transactions and over 100,000 users
